Retail & Unmanned Store
IPT276-V1.0

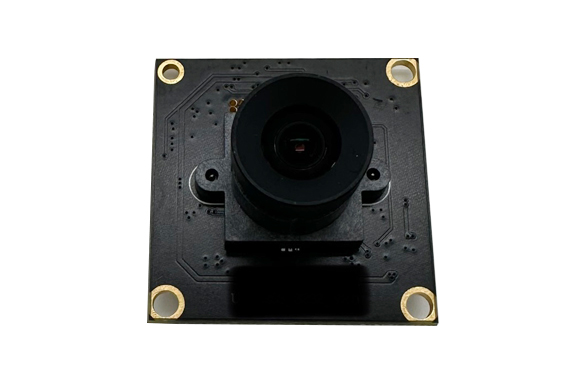

Face recognition Dual sensor 2M USB Camera
Specification
| Module Size | 66.0 x 7.6 x 3.8MM |
| Sensor Type | 1/5inch |
| Pixel Size | 1.75um x 1.75um |
| Active Array Size | 1612 x 1212 |
| Lens Filter | 650±10nm |
| Frame Rate | 1080p: 30 fps |
| Power | DC 5.0V |
| Picture format | YUV/MJPEG |
| Interface type | USB2.0 (driver-free, plug and play) |
| FOV | 88.5° (support 10°-200°) |
| Support OS | Windows XP/Vista/Win7/Win8/win10 Linux/ Max-OS with UVC. |
| Focus mode | Fixed Focus / AUTO Focus |
| Operating temp. | -20°C-70°C |
-
